In 2013, TANN Corporation designed and installed an RTO that utilizes a hot oil heat recovery system for a customer in the film coating industry. This system uses extra energy that is released from the combustion of solvents to heat oil to 450oF, which is then sent back into the ovens for process heating. The only heat source in the ovens is the thermal oil. There are no burners in the ovens.
System Design Specifications:
- 25,000 SCFM RTO
- 99% destruction efficiency
- Waste gas thermal oil coil
- Helical design, carbon steel
- 3,500,000 BTU’s/hr capacity
- Turnkey installation
- Skid mount preassembled design

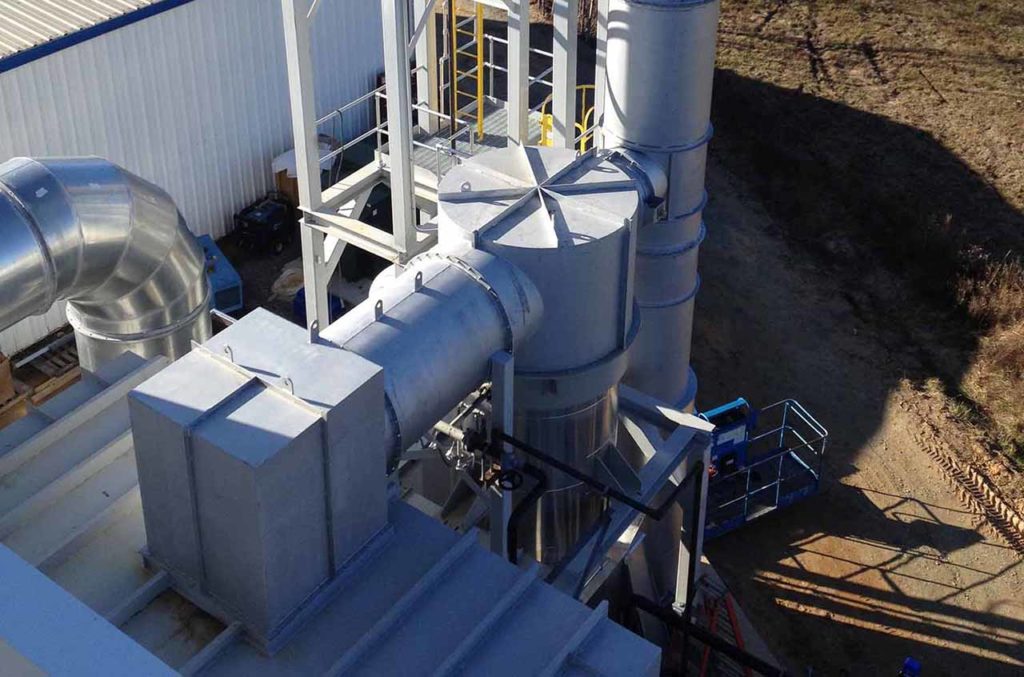

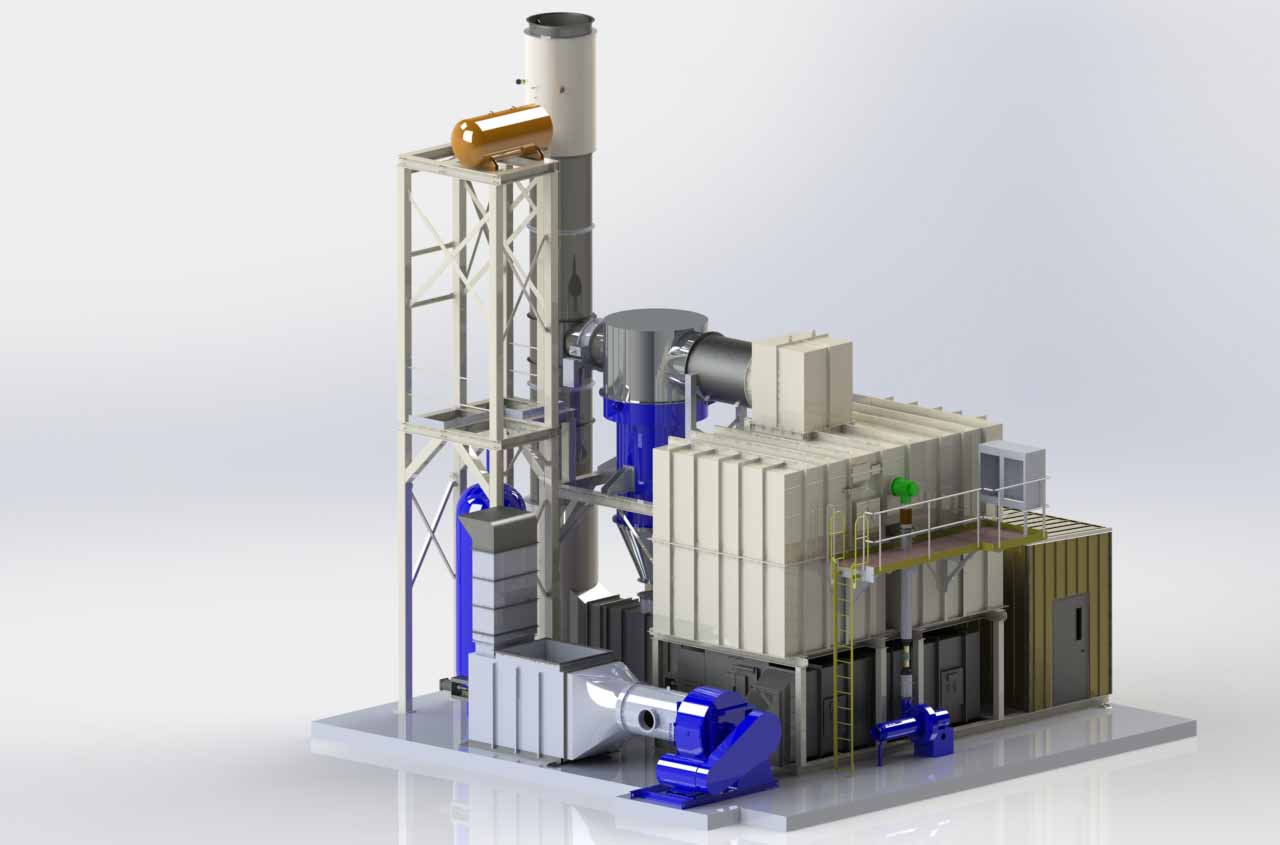

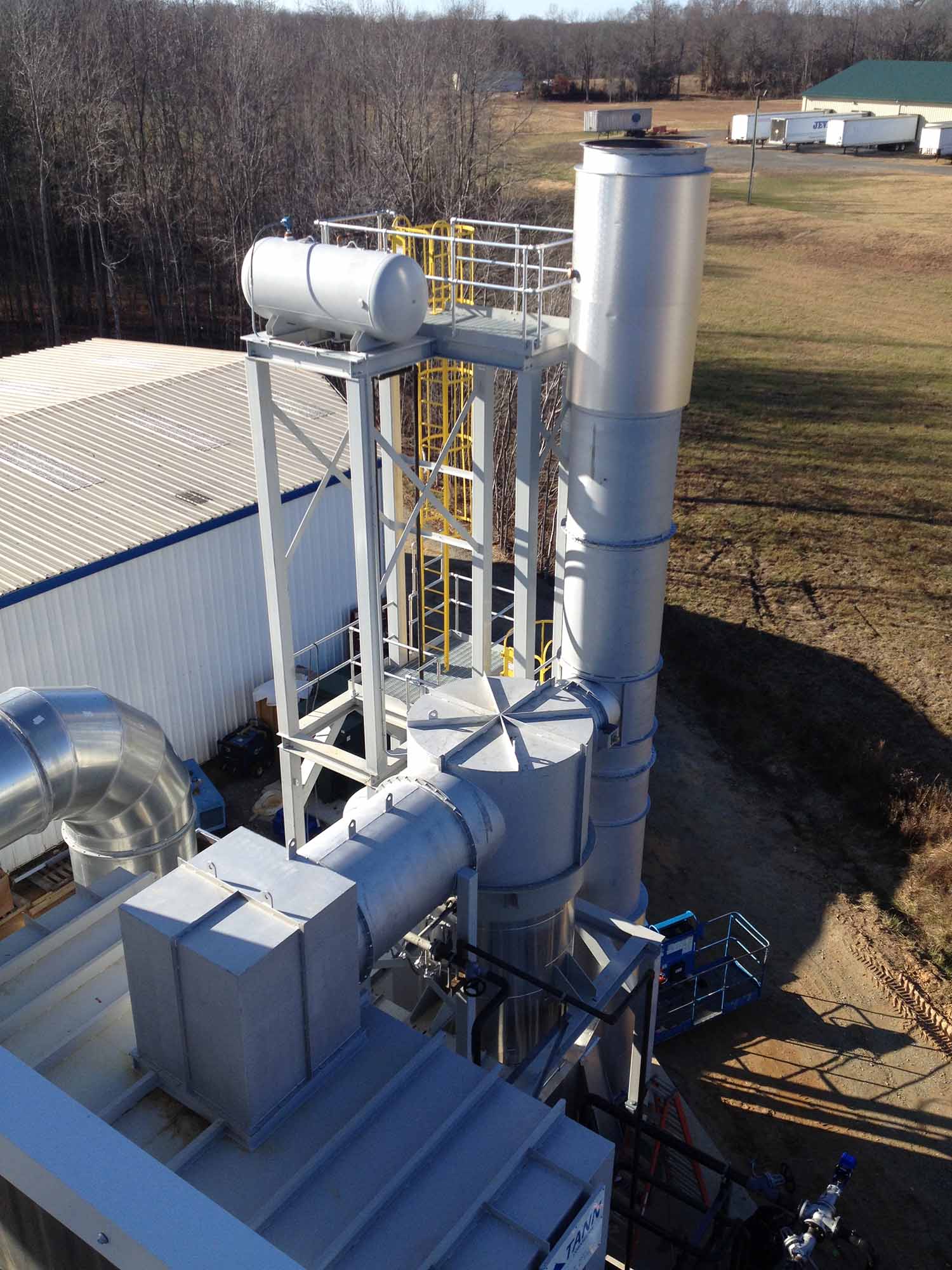

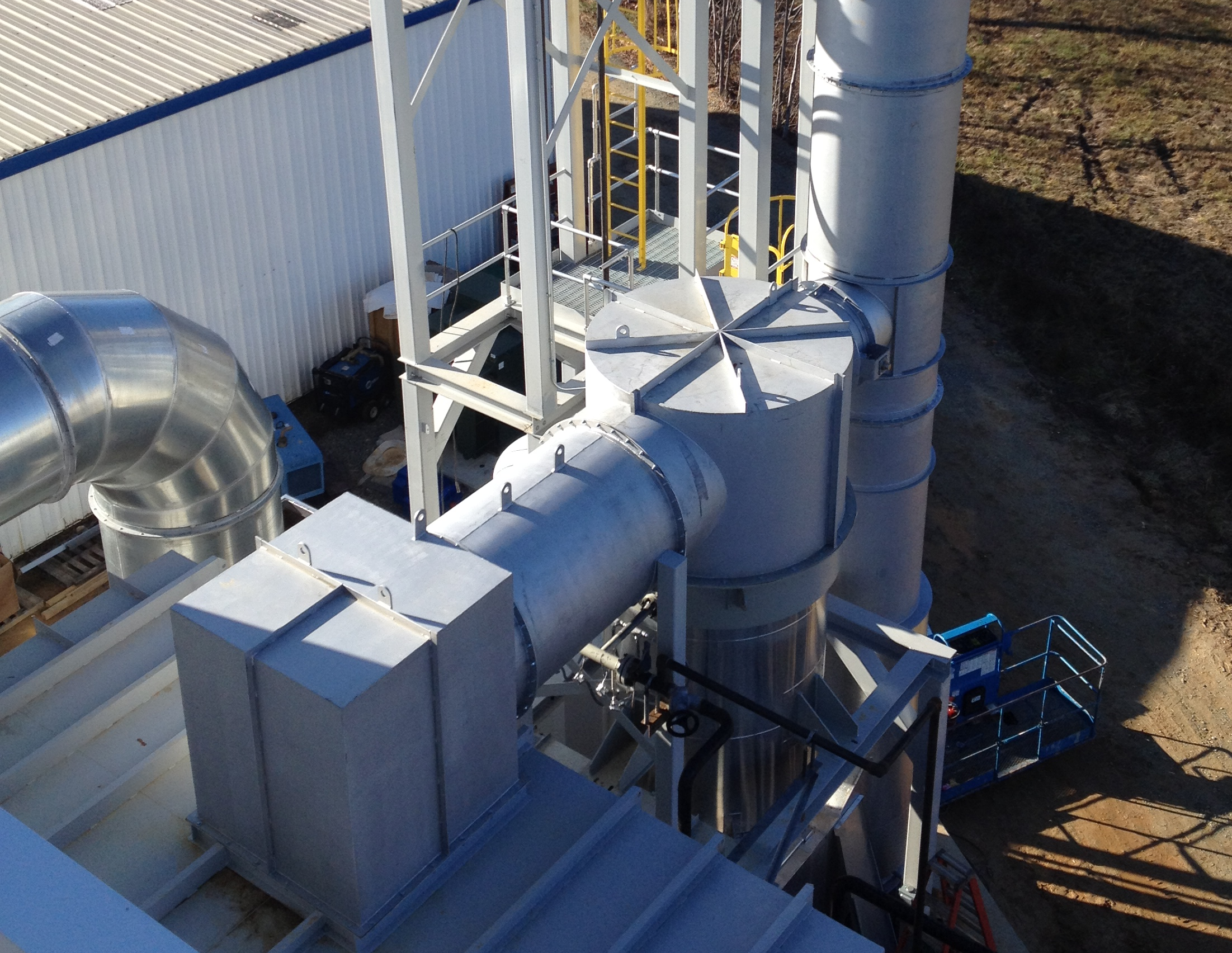

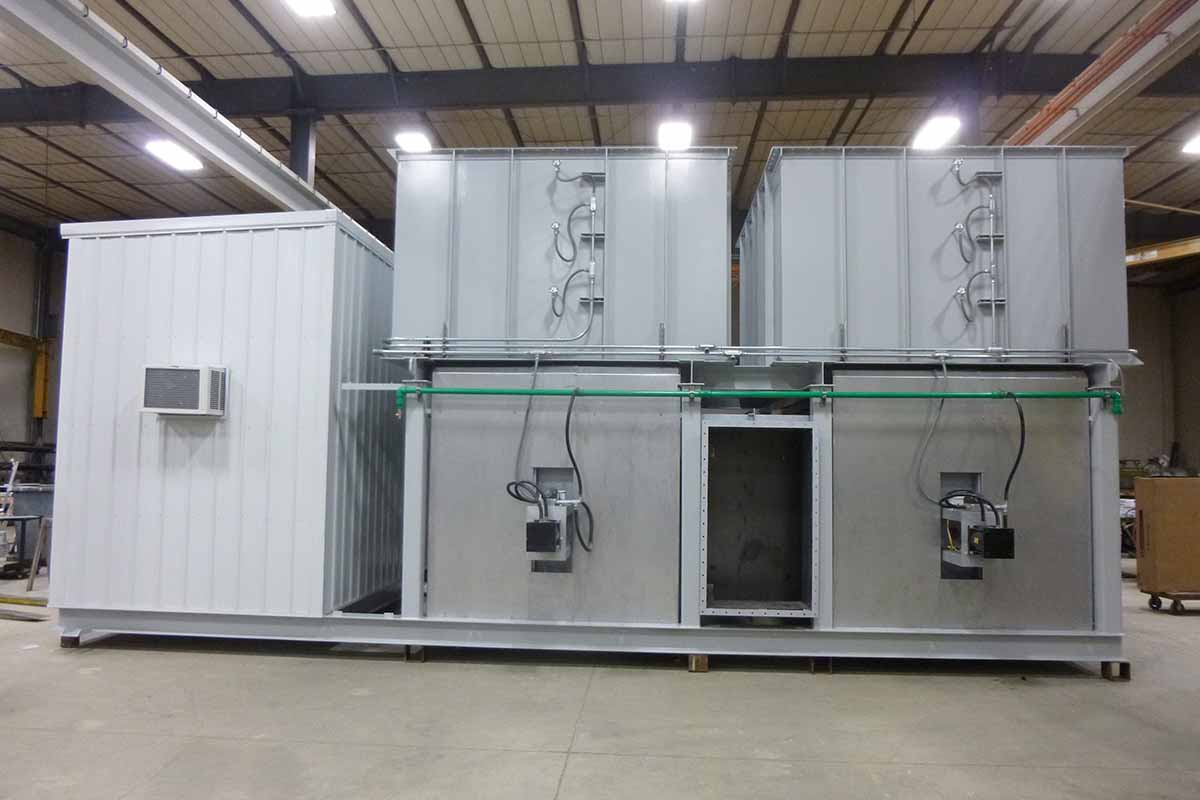

Project Photos
